  • Dinamometrinis raktas | 12.5 mm (1/2") | 60 - 340 Nm (YT-0754)

    Kodas: YT-0754
    Barkodas: 5906083907548
    116.99 € su PVM
    Šią prekę turime sandėlyje.
    Likutis: 2 vnt.
    Pristatymo galimybės

    Galutinė pristatymo kaina ir galimybės gali skirtis dėl prekių, įdėtų į krepšelį.

    DPD Pickup siuntų taškai, per 1 - 3 d. d. 0.00 €
    Venipak pick-up siuntų taškai, per 1 - 3 d. d. 0.00 €
    Venipak pick-up siuntų taškai, per 1 - 3 d. d. 0.00 €
    DPD Pickup siuntų taškai, per 1 - 3 d. d. 10.00 €
    Venipak kurjerių tarnyba, per 1 - 3 d. d. 101.00 €
    DPD kurjerių tarnyba, per 1 - 3 d. d. 101.00 €
    SmartPosti paštomatai, per 1 - 3 d. d. 3.00 €
    DPD Pickup siuntų taškai, per 1 - 3 d. d. 5.00 €
    Venipak pick-up siuntų taškai, per 1 - 3 d. d. 5.00 €
    Omniva paštomatai, per 1 - 3 d. d. 5.00 €
    Venipak kurjerių tarnyba, per 1 - 3 d. d. 7.00 €
    DPD kurjerių tarnyba, per 1 - 3 d. d. 7.00 €
    Lizingo skaičiuoklės
    • esto3
    • esto

    Dinamometrinis raktas | 12.5 mm (1/2") | 60 - 340 Nm (YT-0754)

    Gamintojas
    Prekės ženklas

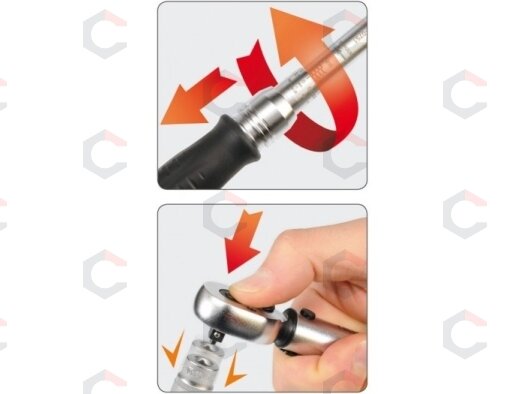

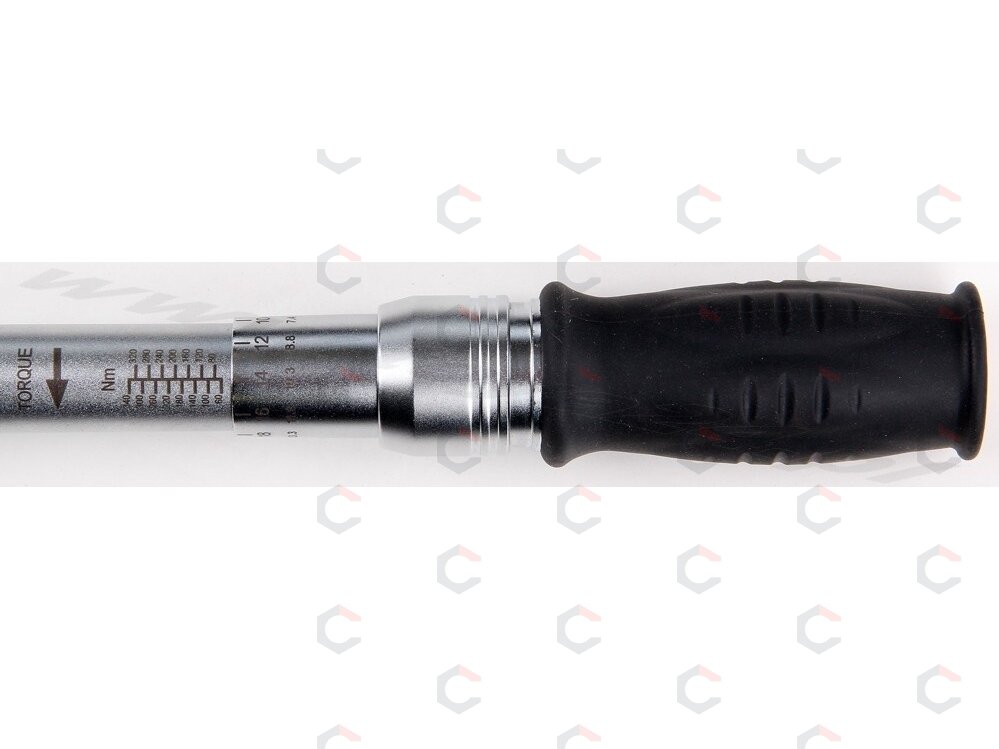

  • Gaminio numeris YT-0754 tikslumas 3% SERTIFIKATAS x skaičius dantų T 32 Ilgis (mm) 613 sukimo momentas (Nm) 60-340 Nm svoris (g) 1810 Product description The key is made of chrome-vanadium steel, which ensures its durability and durability. It has a mechanical tension of the torque wrench which, after reaching the required tightening force, jumps over one tooth, giving a distinctive sound. The scale of moments is placed in the handle of the key, its adjustment is made by turning it. After setting the desired torque, lock the key at the end of the handle. Key is GS certified. Comparative comparison of moments in different units of length and strength: 1 kG * cm = 13,887 OZ * IN (ounce x inch) 1 kG * cm = 0.867 LB * IN (lb. in) 1 kG * m = 9,80665 N * m (Newton x meter) 1 kG * m = 7,233 LB * FT (lb.ft) 1 FT * LB = 12 LB * IN (lb. in) 1 dm * N = 14.16 OZ * IN (ounce x inch) Destination / Application It is mainly used in automotive technology for precise fixing and wherever the manufacturer has specified the required tightening torque of the joint. How to use - Select the appropriate scale Nm or in-lbs. Unlock the micrometer knob. - While holding the unlocked micrometer, rotate the handle of the spanner so that the "0" on the scale of the knob coincides with the vertical line on the key arm. - Turn the handle of the spanner clockwise until the desired torque is set. The desired torque is set when the pitch on the micrometer dial will overlap with the vertical line on the key arm. - Then lock the micrometer knob, making sure that the lock is "caught" and the handle can not be rotated, then set the direction of rotation of the ratchet, then the key is ready for use. - Insert the appropriate cap on the key holder. During tightening, reaching the set torque is indicated by a click of a key. If you hear or feel clicks, you should stop tightening. Contents of the package - torque wrench - factory calibration certificate (individual for each key, denoted by the serial number of the key) - user manual - Warranty Card - suitcase Technical data Index number YT-0754 EAN 5906083907548 Brand Yato PCS unit Gross Weight (kg) 2.3200 Master Carton MC 10 Pal 180 Length [mm] 613 packaging BMC Drive size [inch] 1/2 " Torque value [Nm] 60-340

    ---
